Ford Truck and SUV Towing Capacity
Explore the Towing Capacity of New Ford Trucks and SUVs in Danbury, CT
At Colonial Ford of Danbury, we're proud to provide drivers with detailed information about the towing capacities of our new Ford vehicles. With powerful engines, tow packages, and unique features available across our lineup of vehicles, we'll be here to answer questions so you can make the most of your ownership experience.
Ford Truck Towing Capacities

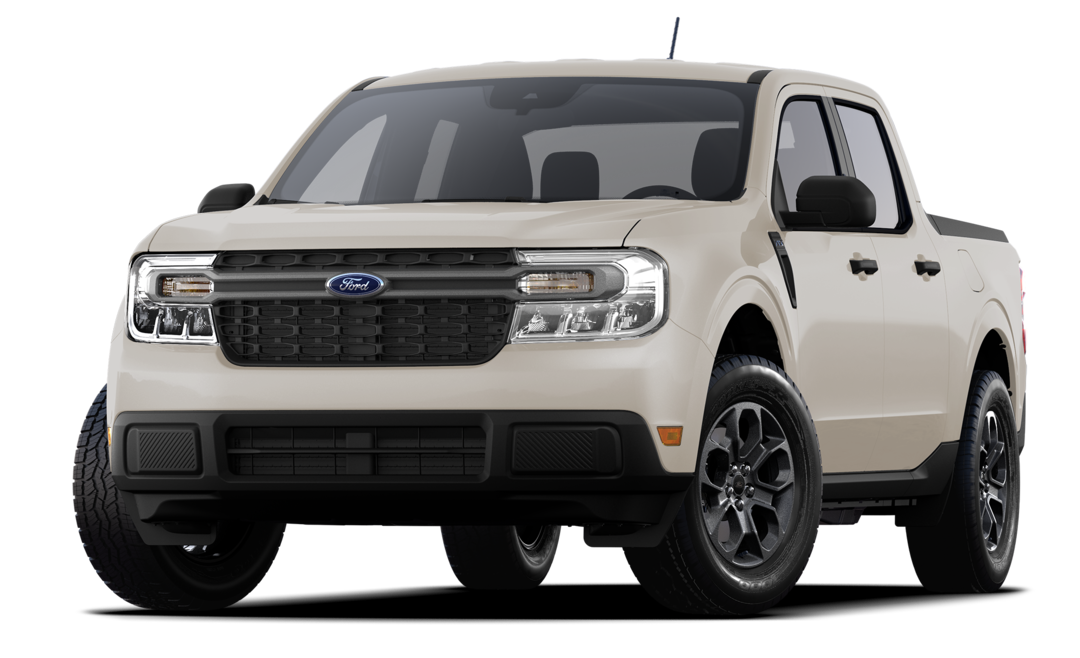

Ford Maverick
Ford Maverick pickup trucks are popular among drivers near New Milford seeking work-ready capability in a compact package. When equipped with the 2.0-liter EcoBoost® engine, all-wheel drive, and the 4K Tow Package, the Ford Maverick offers up to 4,000 pounds of towing capacity.
| Engine | HP @ RPM | Torque @ RPM | Max Towing (lbs) | Max Payload (lbs) |
|---|---|---|---|---|
| 2.5L FHEV (Hybrid) | 191 @ 5,600 | 155lb-ft @ 4,000 | 2,000 lbs. (FWD Only) | 1,500 lbs |
| 2.0L EcoBoost (Gas engine) | 250 @ 5,500 | 277 lb-ft @ 3,000 | 2,000 lbs./4,000 w/ tow package | 1,500 lbs |

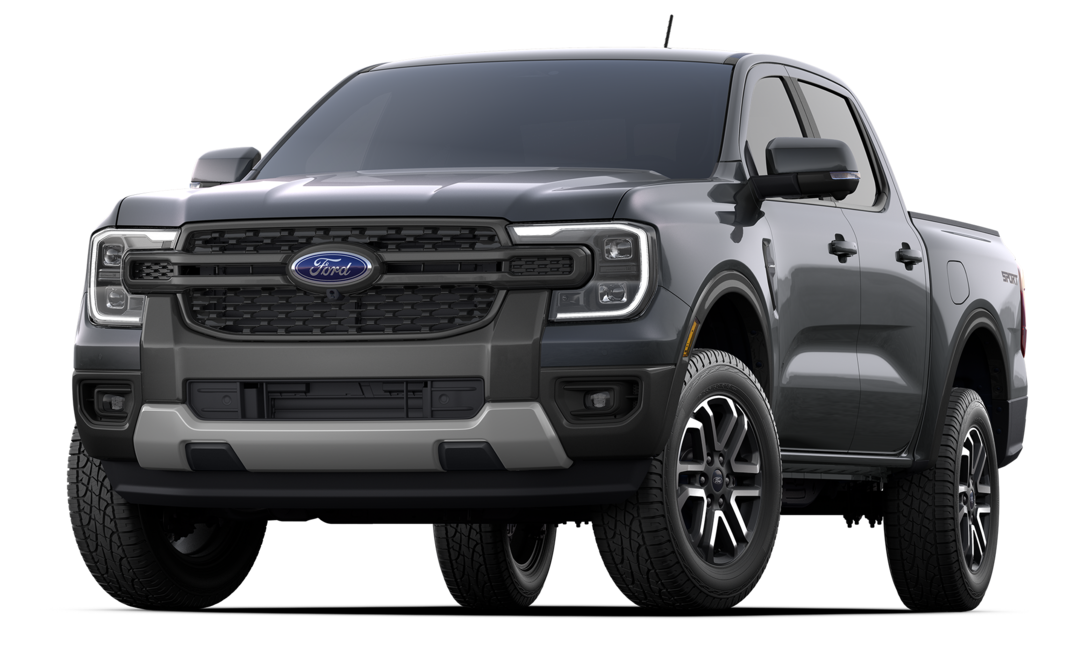

Ford Ranger
Ford Ranger trucks are mid-size models with plenty of grunt, allowing owners and operators to receive maximum capability without sacrificing agility. In Crew Cab configurations with the available Trailer Tow Package, the Ford Ranger can tow up to 7,500 pounds. In comparison, Ford Ranger Raptor® models provide up to 5,510 pounds due to their off-road upgrades.
| Engine | HP @ RPM | Torque @ RPM | Max Towing (lbs) | Max Payload (lbs) |
|---|---|---|---|---|
| 2.3L EcoBoost 4x2 | 270 hp @ 5,500 rpm | 310 lb-ft @ 3,000 rpm | 7,500 lbs. | 1,905 lbs |
| 2.3L EcoBoost 4x4 | 270 hp @ 5,500 rpm | 310 lb-ft @ 3,000 rpm | 7,500 lbs. | 1,696 lbs. |

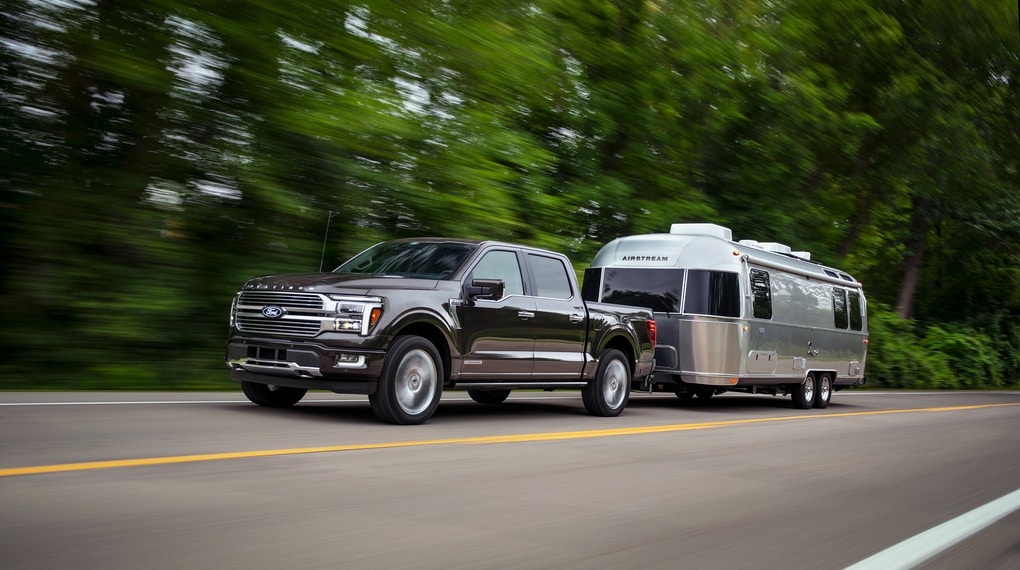

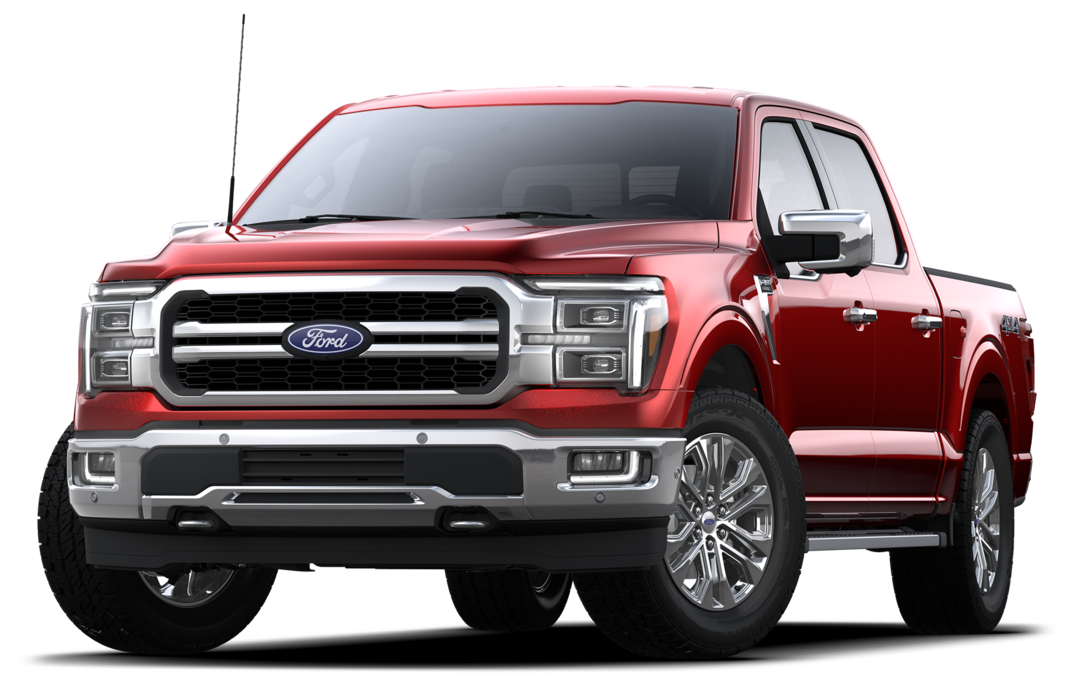

Ford F-150
As the best-selling light-duty pickup truck, the Ford F-150 is a workhorse that provides drivers with long-lasting reliability and class-leading capability. When equipped with the 3.5-liter EcoBoost® V6 engine, SuperCrew cabin, 6.5-foot box, and four-wheel drive, the Ford F-150 provides up to 13,500 pounds of maximum towing capacity.

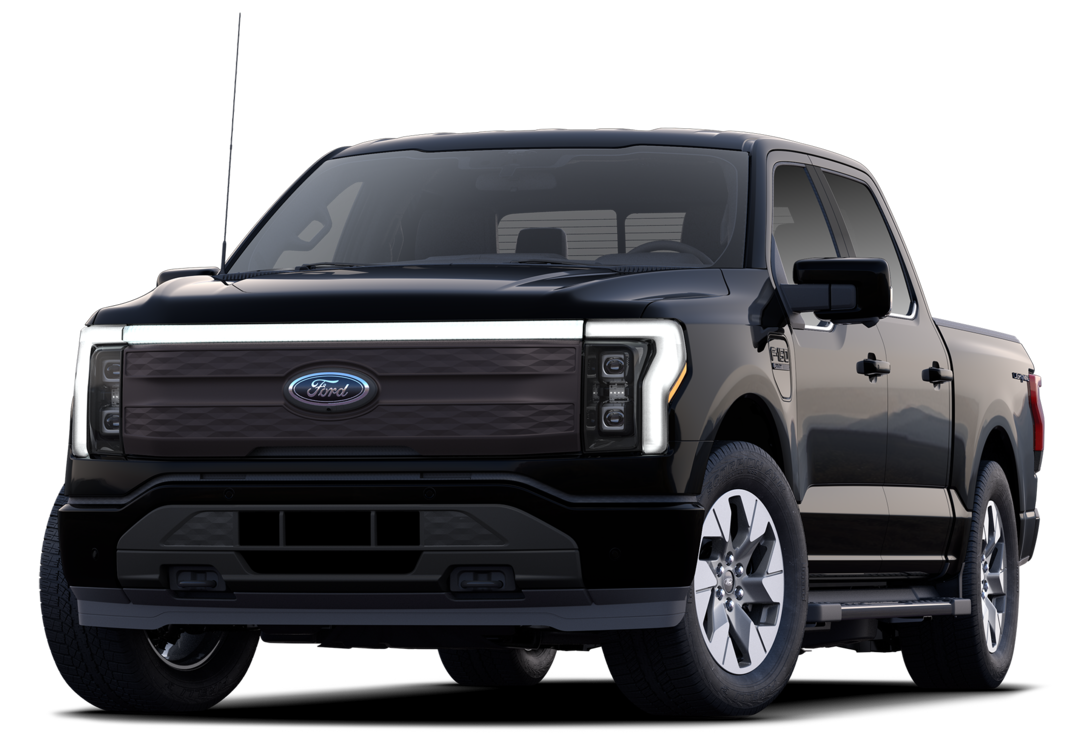

Ford F-150 Lightning
Featuring an all-electric platform with a standard 775 pound-feet of torque, the Ford F-150 Lightning delivers an invigorating driving experience for your adventures near Newtown. When properly equipped with the standard-range battery and 18-inch wheels, the F-150 Lightning can tow up to 10,000 pounds.
| Engine | HP @ RPM | Torque @ RPM | Max Towing (lbs) | Max Payload (lbs) |
|---|---|---|---|---|
| 3.3L Ti-VCT V6 | 290 @ 6,500 | 265 lb-ft @ 4,000 | 8,200 | 1,985 |
| 2.7L EcoBoost V6 | 325 @ 5,000 | 400 lb-ft @ 3,000 | 10,100 | 2,480 |
| 3.5L EcoBoost V6 | 400 @ 6,000 | 500 lb-ft @ 3,100 | 14,000 | 3,250 |
| 5.0L Ti-VCT V8 | 400 @ 6,000 | 410 lb-ft @ 4,250 | 13,000 | 3,325 |
| 3.5L PowerBoost Full Hybrid V6a | 430 @ 6,000 | 570 lb-ft @ 3,000 | 12,700 | 2,120 |

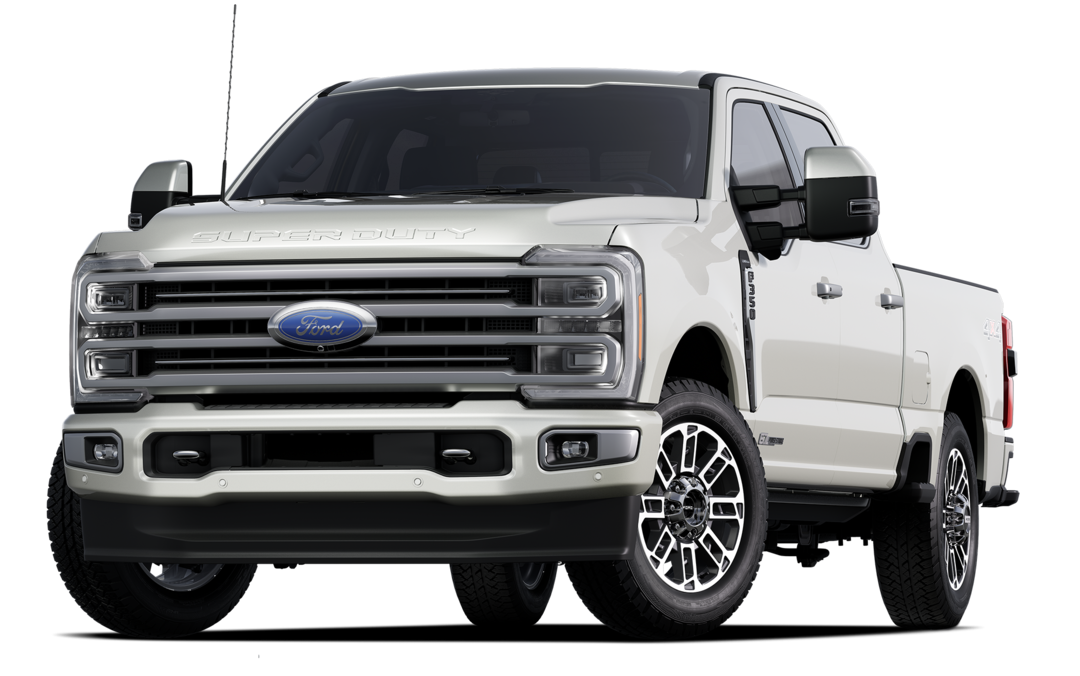

Ford Super Duty® F-250
Stepping into the world of heavy-duty trucks, the Ford Super Duty® F-250 provides that you can achieve impressive results without sacrificing comfort. When equipped with the High-Capacity Axle Upgrade Package and the available 6.7-liter Power Stroke® Turbo Diesel V8 or 6.7-liter High Output Power Stroke® Turbo Diesel V8, drivers can achieve up to 22,000 pounds of conventional towing capacity or up to 23,000 pounds of gooseneck towing capacity.

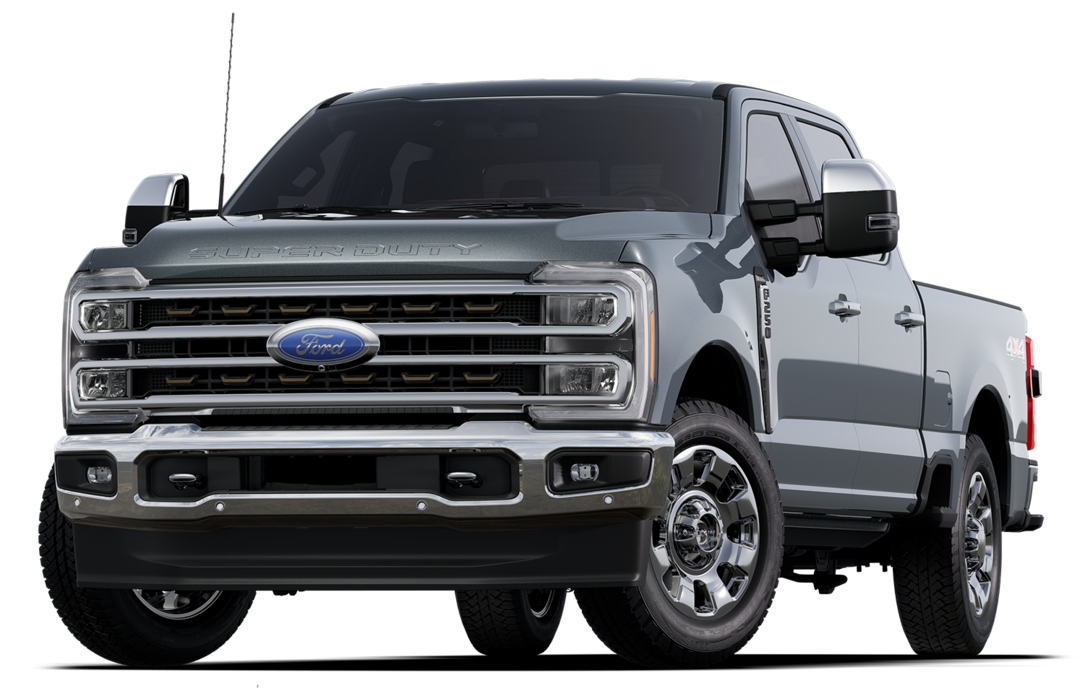

Ford Super Duty® F-350
Providing single-rear-wheel (SRW) and dual-rear-wheel (DRW) configurations, the Ford Super Duty® F-350 can be easily optimized to match your daily workloads and weekend adventures. When properly equipped with the 6.7-liter High Output Power Stroke® Turbo Diesel V8, the Ford F-350 SRW provides up to 27,600 pounds of gooseneck towing capacity, while the Ford F-350 DRW delivers up to 38,000 pounds of gooseneck towing capacity.

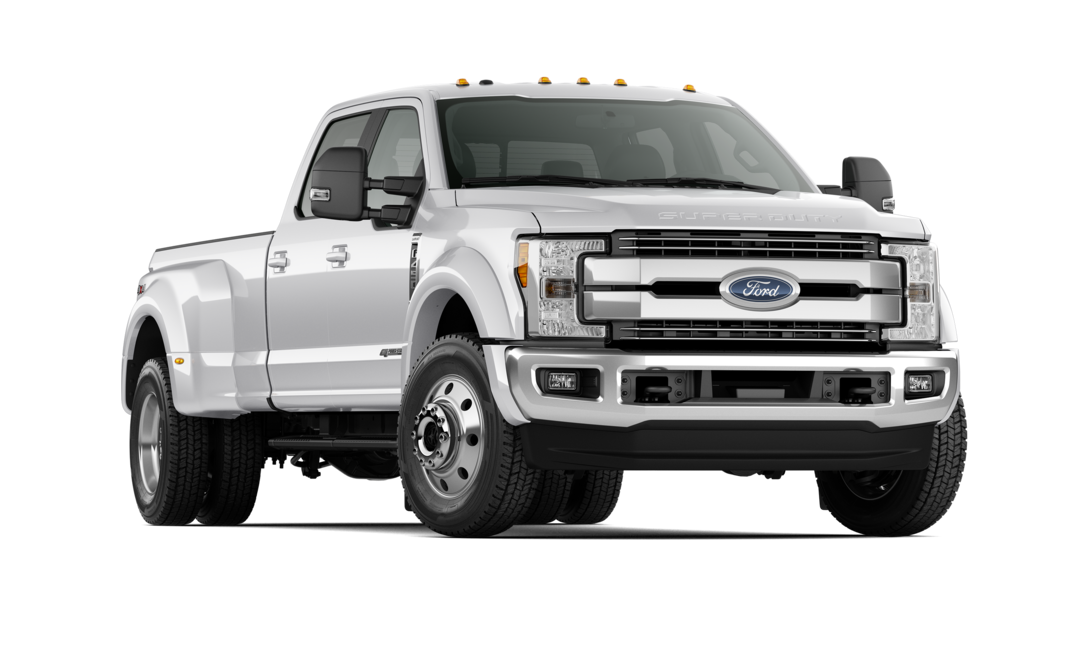

Ford Super Duty® F-450
Thanks to a standard wide-track front axle, dual-rear-wheel configuration, and 6.7-liter Power Stroke® Turbo Diesel V8 engine, the Ford Super Duty® F-450 is the ultimate choice for towing excursions near Monroe. When properly equipped, the Ford F-450 provides a whopping 40,000 pounds of gooseneck towing capacity to help you conquer jobs of all sizes.
| Engine | HP @ RPM | Torque @ RPM | Max Towing (lbs) | Max Payload (lbs) |
|---|---|---|---|---|
| 6.2L N/A V8 Gas | 385 @ 5,750 rpm | 430 @ 3,800 rpm | 13,300 4x2/12,900 4x4. | 3,550 to 4,160* |
| 7.3L N/A V8 Gas | 430 @ 5,500 rpm | 475 @ 4,000 rpm | 14,000 4x2/15,000 4x4lbs. | 3,550 to 4,160*. |
| 6.7L Power Stroke® V8 Turbo Diesel | 475 @ 2,600 rpm | 1,050 @ 1,600 rpm | 15,000 lbs. | 3,550 to 4,160* |
These numbers are based off the F-250 Super Duty. *Depending on configuration
Ford SUV Towing Capacities

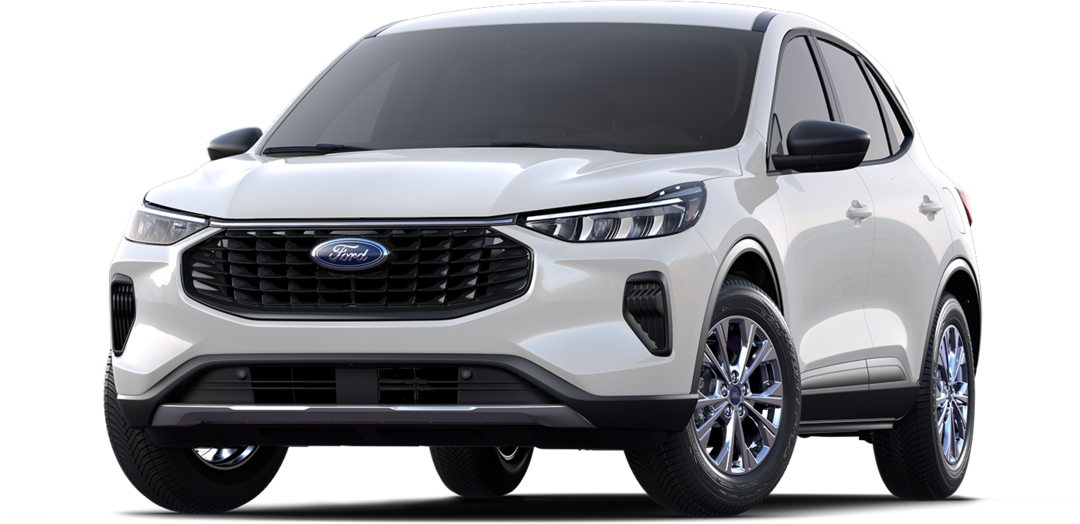

Ford Escape
Featuring a compact platform with EcoBoost® engines and available hybrid or plug-in hybrid variants, the Ford Escape is a beloved model among drivers near Brookfield. When properly equipped with the Class II Trailer Tow Package, the Ford Escape offers up to 2,000 pounds of towing capacity. With the available Class III Trailer Tow Package and 2.0-liter EcoBoost® engine, drivers receive a maximum towing capacity of 3,500 pounds.
| Engine | HP @ RPM | Torque @ RPM | Max Towing (lbs) |
|---|---|---|---|
| 2.5L hybrid | 165 @6,250**(200** total system) | 155 @4,000** | 1,500 |
| 2.5L plug-in hybrid | 165 @6,250**(221** total system) | 155 @4,000** | 1,500 |
| 1.5L EcoBoost | 181 @6,000 rpm* | 190 @3,000 rpm* | 2,000. |
| 2.0L EcoBoost | 250 @ 5,500 rpm* | 280 @ 3,000 rpm* | 3,500. |
T*Horsepower and torque ratings based on premium fuel per SAE J1349 standard. Your results may vary.**Calculated via combined performance of the engine and electric motor(s) with peak battery power. The calculations utilize SAE J1349® engine results and Ford electric motor dyno testing. Your results may vary.

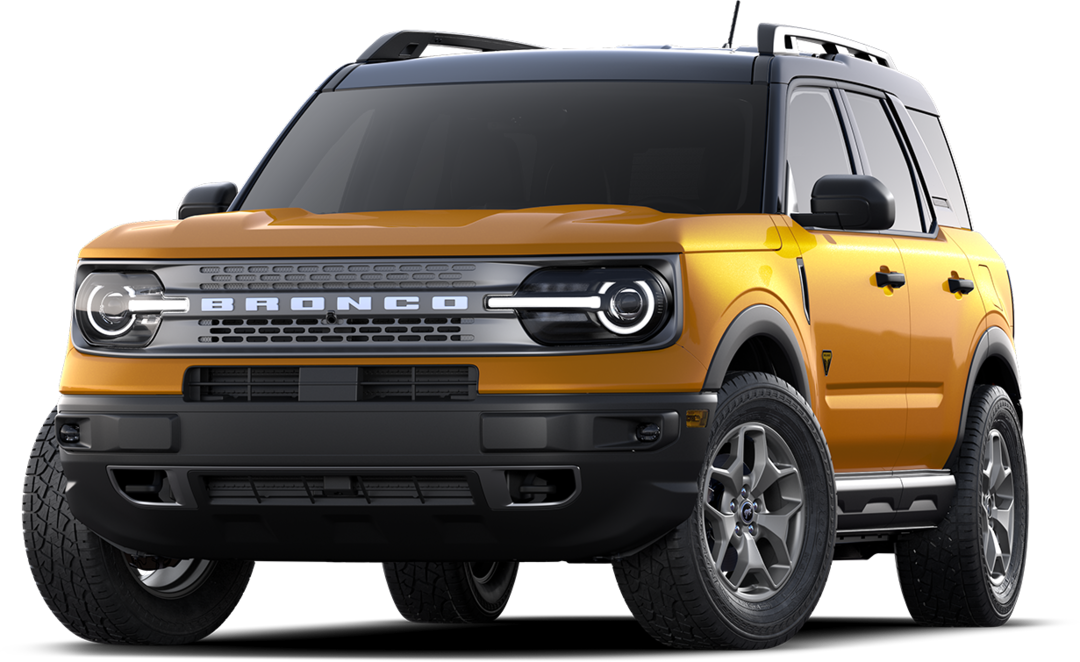

Ford Bronco Sport
Ford Bronco Sport models blend urban-focused comfort with trail-ready capability. When equipped with the standard 1.5-liter EcoBoost® engine, drivers can achieve up to 2,000 pounds of towing capacity, while the available 2.0-liter EcoBoost® engine offers up to 2,200 pounds of towing capacity.
| Engine | HP @ RPM | Torque @ RPM | Max Towing (lbs) | Max Payload (lbs) |
|---|---|---|---|---|
| 1.5L EcoBoost | 181 @ 6,000 rpm | 2,000 | 1,170 lbs | |
| 2.0L EcoBoost | 250 @ 5,500 rpm | 277 @ 3,000 rpm | 2,200 | 1,010 lbs |

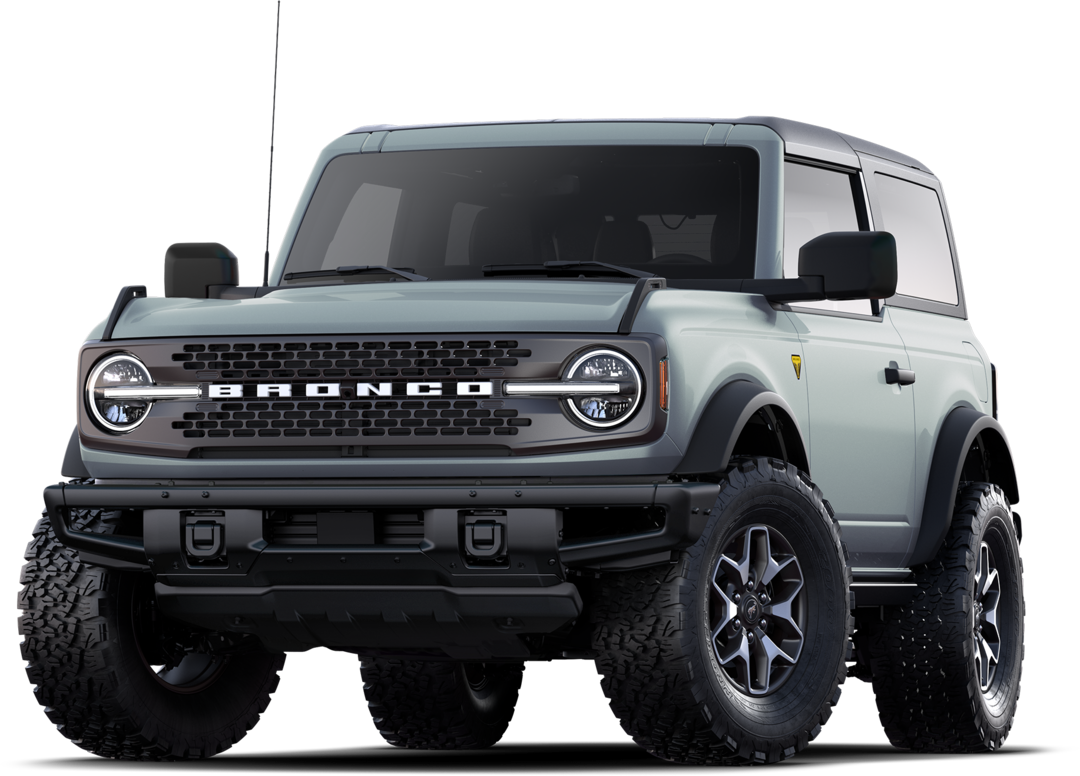

Ford Bronco
Delivering incredible capability for off-road adventures, the Ford Bronco is an iconic nameplate with decades of history. When equipped with the 2.3-liter EcoBoost® engine or available 2.7-liter EcoBoost® V6, drivers receive up to 3,500 pounds of maximum towing capacity. Ford Bronco Raptor® models with the 3.0-liter EcoBoost® V6 engine provide up to 4,500 pounds of towing capacity when properly equipped.
| Engine | HP @ RPM | Torque @ RPM | Max Towing (lbs) | Max Payload (lbs) |
|---|---|---|---|---|
| 2.3L EcoBoost | 275 @ 5,700 rpm | 315 @ 3,400 rpm | 3,500 | 1,246 lbs |
| 2.7-liter EcoBoost V6 | 315 @ 5,500 | 410 lb-ft @ 3,000 | 3,500 | 1,224 lbs |

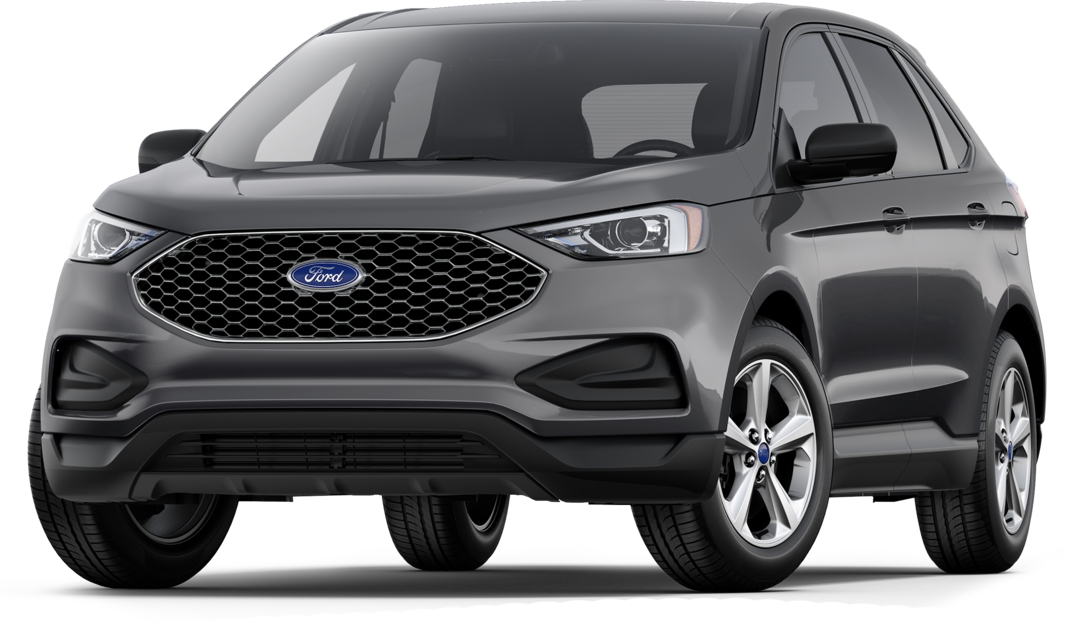

Ford Edge
Featuring standard all-wheel drive capability, the Ford Edge is a premium crossover with plenty of versatility. When equipped with the Class II Trailer Tow Package, the Ford Edge offers up to 3,500 pounds of towing capacity no matter which engine you choose.
| Engine | HP @ RPM | Torque @ RPM | Max Towing (lbs) | Max Payload (lbs) |
|---|---|---|---|---|
| 2.0L EcoBoost I-4 turbocharged | 250 @ 5,500 (tested with 93-octane fuel) | 280 @ 3,000 (tested with 93-octane fuel) | 6,300 | N/A |
| 2.0L EcoBoost I-4 turbocharged | 250 @ 5,500 (tested with 93-octane fuel) | 280 @ 3,000 (tested with 93-octane fuel) | 8,300 | N/A |
| 2.7L EcoBoost V6 twin-turbocharged | 335 @ 5,550 (tested with 93-octane fuel) | 380 @ 3,250 (tested with 93-octane fuel) | 8,500 | N/A |

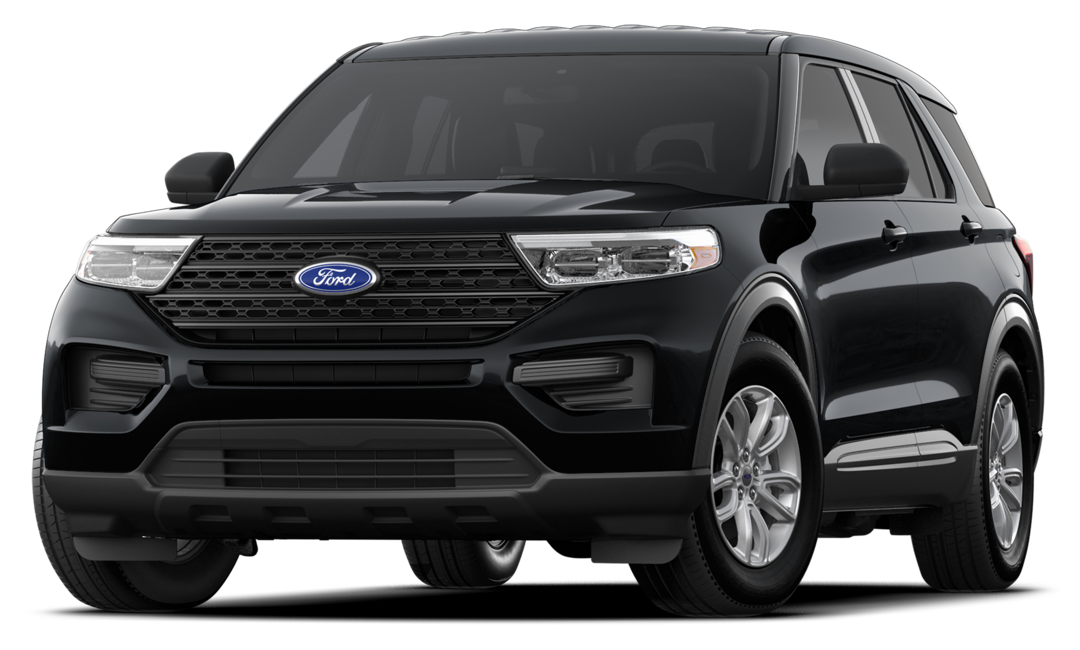

Ford Explorer
As one of the most family-friendly SUVs, the Ford Explorer is a versatile option that is ready to conquer the outdoors. Thanks to a standard Class III Trailer Tow Package, all Ford Explorer models offer up to 5,000 pounds of towing capacity.
| Engine | HP @ RPM | Torque @ RPM | Max Towing (lbs) | Max Payload (lbs) |
|---|---|---|---|---|
| 2.3L EcoBoost I4 | 300 @ 5,500 rpm* | 310 @ 3,500 rpm* | N/A. | N/A |
| 3.0L EcoBoost V6 | 400 | 415 | N/A. | N/A |
| 3.3L HEV V6 | 318 @ 6,500 rpm** | 322 @ 2,500 rpm** | N/A. | N/A |
*ST model only | **requires optional Class III Trailer Tow Package

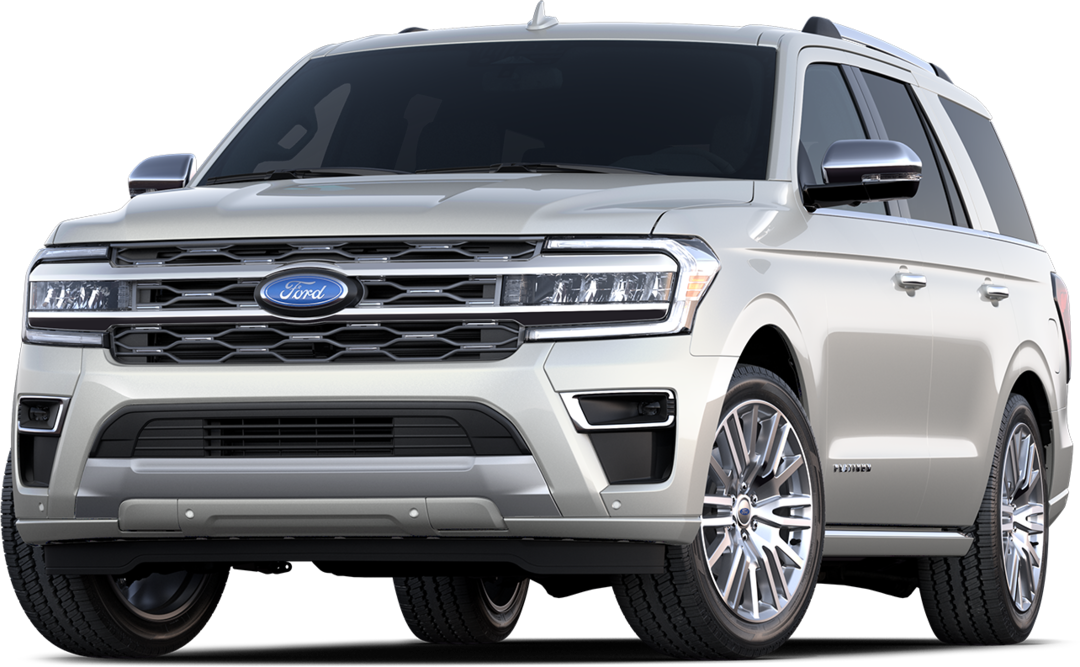

Ford Expedition
Sporting a full-size platform with a roaring 3.5-liter EcoBoost® V6 engine, the Ford Expedition is bound to leave you smiling as you cruise around Ridgefield. In standard-wheelbase models with the Class IV Heavy-Duty Trailer Tow Package and rear-wheel drive, the Ford Expedition provides up to 9,300 pounds of towing capacity. In long-wheelbase models, the Ford Expedition MAX provides up to 9,000 pounds of towing capacity with the Class IV Heavy-Duty Trailer Tow Package and rear-wheel or four-wheel drive.
| Engine | HP @ RPM | Torque @ RPM | Max Towing (lbs) | Max Payload (lbs) |
|---|---|---|---|---|
| 3.5L EcoBoost V6 (Expedition) | 380 @ 5,000 (XL-STX, XLT) | 470 @ 2,250 (XL-STX, XLT) | 12,000 4x2/12,300 4x4 | 6,000 |
| 3.5L EcoBoost V6 (Expedition Max) | 400 @ 5,000* (Limited , King Ranch, Platinum) | 480 @ 5,000* (Limited, King Ranch, Platinum) | 12,500 4x2/12,400 4x4. | 6,300 4x2/6,000 4x4 |
These numbers change with the heavy-duty trailer towing package. See dealer for details.
Receive Additional Support Today
Colonial Ford of Danbury is here to help whether you have questions about the capabilities of a particular model or want to receive hands-on experience with our lineup of new Ford trucks and SUVs. When you're ready to conquer the vehicle purchase process and drive home happy in a vehicle that matches your lifestyle, get in touch with our sales team online, over the phone, or in person at our dealership near US-202 and I-84.
